M80

Infinite Possibilities

High productivity, usability and flexibility delivered by breakthrough performance. The next-generation CNC M800/M80 Series empowers the manufacturing industry with unlimited possibilities and the capability to create innovative value.

CNC Dedicated CPU

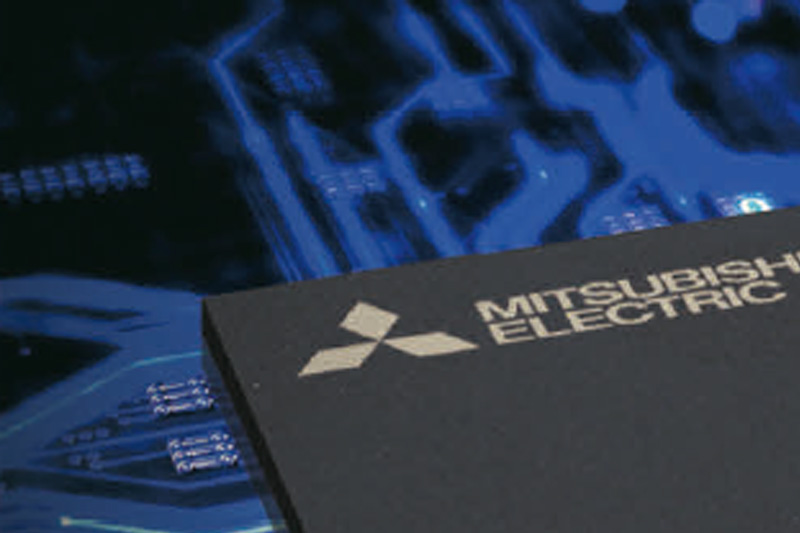

The first CNC dedicated CPU

Leading the way in today’s industrial globalization, the innovative products of Mitsubishi Electric continue to exceed the expectations of users around the world. The outstanding performance of our CNC lineup consistently wins praise from users for their high levels of productivity, intuitive usability, and superior functionality. However, to develop the new M800/M80 Series, we went back to the drawing board and compleTely reexamined our cutting-edge control technologies. The result is a breakthrough in the control of high-speed, high-precision machining.

A leap in processing performance

The Pursuit of a dedicated CNC CPU began with design validation on an unprecedented scale as well as high-precision simulations to verify processing performance. Achieving a leap in processing performance demanded the integration of innovative technologies beyond optimizing processor manufacturing processes. Overcoming numerous hurdles and maximizing the potential of the processor, we succeeded in producing a CNC-dedicated CPU that achieves unprecedented high-speed processing performance.

A new chapter in CNC development

The story of the new M800/M80 Series began with conventional development to produce incremental evolutionary improvements. But our goal was a revolutionary leap in CNC performance. Our project team determined that the only way to significantly boost processing performance and totally satisfy user demands would be the creation of a CPU optimized for CNC control. This insight inspired Mitsubishi Electric’s first-ever attempt to develop a CNC-dedicated CPU and opened a new chapter in CNC development.


Functions & Design

Incorporating the CNC-dedicated CPU in the new series not only results in phenomenal processing speed, but also reduces the number of required parts, leading to fewer possibilities of failure and increasing product quality. Equipped with Mitsubishi Electric’s first-ever CNC-dedicated CPU, the long-awaited M800/M80 Series is the fruit of an original development process and the sum of our latest technologies. With the utmost confidence, we are proud to introduce the M800/M80 Series and invite customers to experience performance of the future today.

All option incl.

As a global standard, the M80 CNC comes with all features included and without additional options.

Large-capacity SD Program support

Support for large-capacity custom data using the SD memory on the back of display

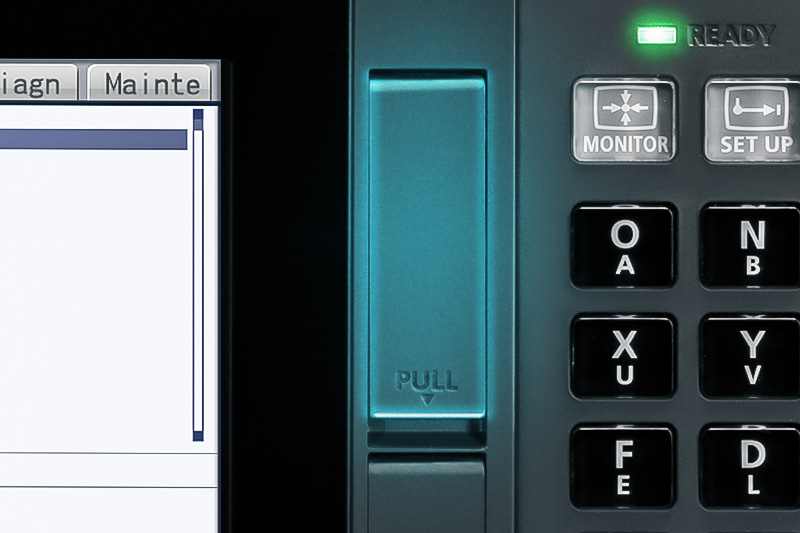

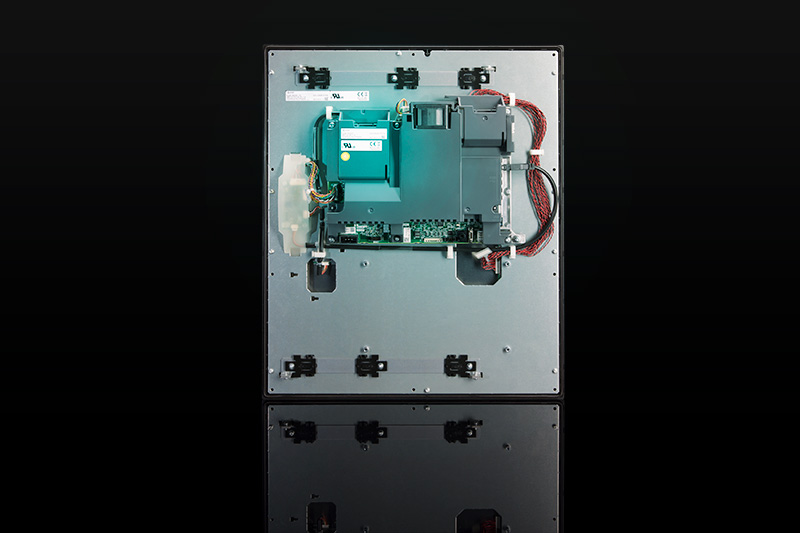

The panel-in type CNC with integrated display has the SD card interface on the back of the display. By installing an SD memory card, large-capacity machining programs can be stored.

Significantly easier Programming

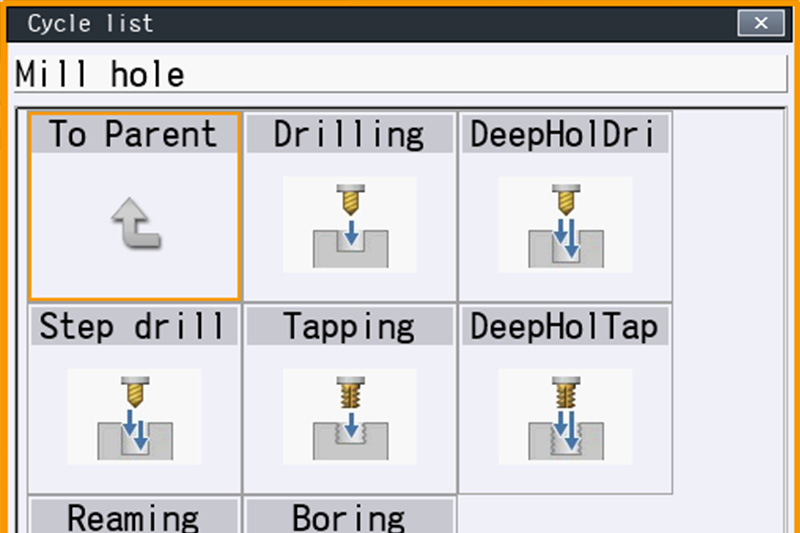

The M80 Series comes with Interactive Cycle Insertion (ICI). This simple programming system lets you easily create programs for each process. Whether you need to turn, copy, groove or thread, the easy-to-read interface clearly displays the tool path or machining shape you want.

Intuitive Touch Screen Operation

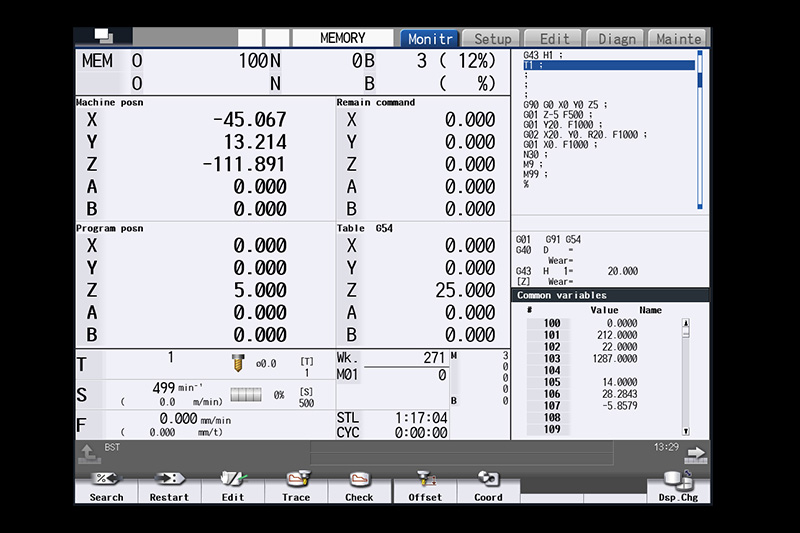

Icon-based navigation improves usability for experienced and novice operators. Screen sizes of 10.4“ and 15“  allow improved visibility and include pinch, flick and scroll abilities like a smart phone or tablet.

Field Network Compatibility

Connect to peripheral equipment and devices conforming to a range of field networks including CC-Link®, PROFIBUS® DP, and EtherNet/IP™.

Unique Customization

Customize the standard screen

Each operator has their own set of frequently used menus. This CNC allows operators to rearrange their menus and hide any unused ones so they can easily navigate to their desired screen. This CNC has a function called Selective Display, which enables partial customization of the Monitor screen. Selectable Display allows you to constantly display tool offsets, common variables, or a custom screen made by a machine builder.

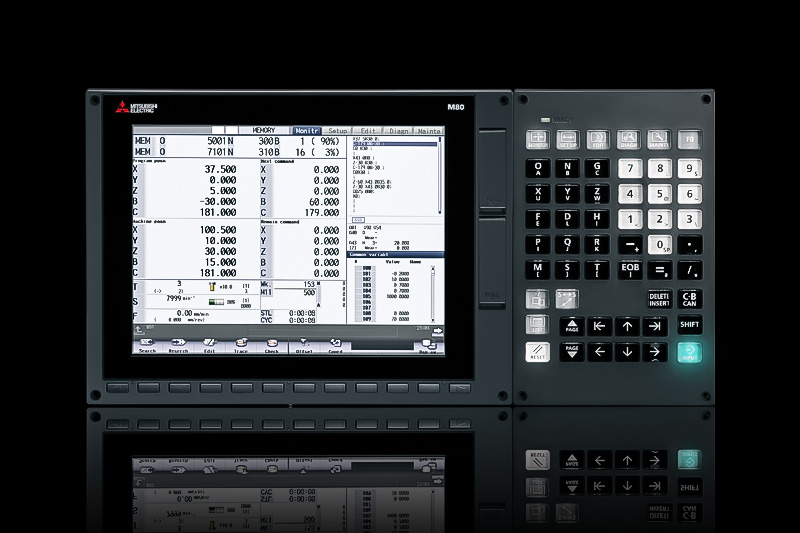

Display redesigned for enhanced visibility of keyboard

The display and keyboard have been redesigned. Measuring only 9.5mm thick (excluding protrusions), the possibilities of machine tool design have been expanded. In addition, their gray-scale colors can be easily harmonized with machines in different colors. The surfaces of display and keyboard are flush, providing beauty and usability as well as increased operability. 10.4-type and larger displays have touchscreen made of beautiful, long-life glass, which allows you easy day-to-day maintenance. Vertical mount and horizontal mount keyboards are included in the product line.

Experience the revolutionary high-speed processing of the new CNC-dedicated CPU

Incorporating the CNC-dedicated CPU in the new series not only results in phenomenal processing speed, but also reduces the number of required parts, leading to fewer possibilities of failure and increasing product quality. Equipped with Mitsubishi Electric’s first-ever CNC-dedicated CPU, the long-awaited M800/M80 Series is the fruit of an original development process and the sum of our latest technologies. With the utmost confidence, we are proud to introduce the M800/M80 Series and invite customers to experience performance of the future today.

Unique Customization

Unique Customization

The panel-in type CNC with integrated that cover the entire system including CNC, drive, I/O, sensors and communication. display has the SD card interface on the back of the display. By installing an SD memory card, large-capacity machining programs can be stored.

High-speed, high-accuracy, high-quality cutting through SSS-4G control

M800/M80 Series offers SSS 4th-generation (SSS-4G) control, enabling high-speed, high-accuracy, high-quality machining. SSS-4G control provides features that are effective in reducing tact time, including optimal acceleration/deceleration suited to each axis’ characteristics. In addition, SSS-4G is capable of reducing machine vibration during high-speed cutting. SSS-4G control allows for greater cutting accuracy in the same length of time, or shorter cutting time with the same degree of accuracy when compared to our previous models.

Improved milling features using a tool spindle

High-speed high-accuracy control features accumulated originally for machining centers are now available in lathe system. Fine milling can be implemented at high speeds on a lathe. This CNC enables a servo motor, instead of a spindle, to act as a tool spindle. Any of the servo control axes driven by multi-hybrid drive can be used as a tool spindle. This contributes to the downsizing of machine tools.

High productivity and high quality are our primary focus

CNC-dedicated CPU is incorporated in the M800/M80 Series, providing significantly improved short segment processing capability. The benefits are not limited to improvements in basic performance alone. The Tolerance Control function enables operators to achieve high-quality surfaces simply by specifying the desired dimensional accuracy. This feature takes machining to a whole new level.

M800/M80

M800/M80 Series provides new features that can maximize the full potential of machine tools, including: Variable-acceleration pre-interpolation acceleration/deceleration provides optimized acceleration, with each axis’ characteristics fully exercised. For example, allowing a linear axis to accelerate irrespective of rotary axis responsiveness. “OMR-FF control” allows for optimal position loop gain adjustment suited to each axis, leading to smoother and more accurate cutting. Other than the above, this CNC has new functionality effective for higher productivity, including “Rapid traverse block override function” that helps reduce non-cutting time by overlapping feed blocks.

Multi-axis multi-part system control features help to reduce cycle time and maintain synchronization between part systems

M800/M80 Series provides “Spindle superimposition control, “a feature that enables simultaneous execution of turni ng and center tapping, although they need to be executed individually. These features are effective in eliminating idle time, resulting in a significant reduction in tact time. This CNC also offers features that maintain synchronization between part systems, which is required for automatic lathes, in particular. These enable operators to implement even more complex machining safely and securely.

Real-time tuning helps maintain machine stability by adjusting the control gain automatically

This function estimates the work inertia and changes the speed control gain or time constant automatically according to the estimation results to suppress mechanical vibration.

Movie

Significantly easier programming

Operators can set machining cycles easily in an interactive manner while monitoring the finished work shape. In addition to the input of normal shape data, you can also extract drawing elements from CAD data in DXF format, and set them as shape data, which makes programming easier. Programmed shape can be checked in 3D graphic check before machining to check for any program error.

plus
Show all Features

Display redesigned for enhanced visibility of keyboard

The display and keyboard have been redesigned. Measuring only 9.5mm thick (excluding protrusions), the possibilities of machine tool design have been expanded. In addition, their gray-scale colors can be easily harmonized with machines in different colors. The surfaces of display and keyboard are flush, providing beauty and usability as well as increased operability. 10.4-type and larger displays have touchscreen made of beautiful, long-life glass, which allows you easy day-to-day maintenance. Vertical mount and horizontal mount keyboards are included in the product line.

Experience the revolutionary high-speed processing of the new CNC-dedicated CPU

Incorporating the CNC-dedicated CPU in the new series not only results in phenomenal processing speed, but also reduces the number of required parts, leading to fewer possibilities of failure and increasing product quality. Equipped with Mitsubishi Electric’s first-ever CNC-dedicated CPU, the long-awaited M800/M80 Series is the fruit of an original development process and the sum of our latest technologies. With the utmost confidence, we are proud to introduce the M800/M80 Series and invite customers to experience performance of the future today.

Unique Customization

The panel-in type CNC with integrated that cover the entire system including CNC, drive, I/O, sensors and communication. display has the SD card interface on the back of the display. By installing an SD memory card, large-capacity machining programs can be stored.

High-speed, high-accuracy, high-quality cutting through SSS-4G control

M800/M80 Series offers SSS 4th-generation (SSS-4G) control, enabling high-speed, high-accuracy, high-quality machining. SSS-4G control provides features that are effective in reducing tact time, including optimal acceleration/deceleration suited to each axis’ characteristics. In addition, SSS-4G is capable of reducing machine vibration during high-speed cutting. SSS-4G control allows for greater cutting accuracy in the same length of time, or shorter cutting time with the same degree of accuracy when compared to our previous models.

Improved milling features using a tool spindle

High-speed high-accuracy control features accumulated originally for machining centers are now available in lathe system. Fine milling can be implemented at high speeds on a lathe. This CNC enables a servo motor, instead of a spindle, to act as a tool spindle. Any of the servo control axes driven by multi-hybrid drive can be used as a tool spindle. This contributes to the downsizing of machine tools.

High productivity and high quality are our primary focus

CNC-dedicated CPU is incorporated in the M800/M80 Series, providing significantly improved short segment processing capability. The benefits are not limited to improvements in basic performance alone. The Tolerance Control function enables operators to achieve high-quality surfaces simply by specifying the desired dimensional accuracy. This feature takes machining to a whole new level.

M800/M80

M800/M80 Series provides new features that can maximize the full potential of machine tools, including: Variable-acceleration pre-interpolation acceleration/deceleration provides optimized acceleration, with each axis’ characteristics fully exercised. For example, allowing a linear axis to accelerate irrespective of rotary axis responsiveness. “OMR-FF control” allows for optimal position loop gain adjustment suited to each axis, leading to smoother and more accurate cutting. Other than the above, this CNC has new functionality effective for higher productivity, including “Rapid traverse block override function” that helps reduce non-cutting time by overlapping feed blocks.

Multi-axis multi-part system control features help to reduce cycle time and maintain synchronization between part systems

M800/M80 Series provides “Spindle superimposition control, “a feature that enables simultaneous execution of turni ng and center tapping, although they need to be executed individually. These features are effective in eliminating idle time, resulting in a significant reduction in tact time. This CNC also offers features that maintain synchronization between part systems, which is required for automatic lathes, in particular. These enable operators to implement even more complex machining safely and securely.

Real-time tuning helps maintain machine stability by adjusting the control gain automatically

This function estimates the work inertia and changes the speed control gain or time constant automatically according to the estimation results to suppress mechanical vibration.

Significantly easier programming

Operators can set machining cycles easily in an interactive manner while monitoring the finished work shape. In addition to the input of normal shape data, you can also extract drawing elements from CAD data in DXF format, and set them as shape data, which makes programming easier. Programmed shape can be checked in 3D graphic check before machining to check for any program error.


System Configurations

A wide selection of fieldbus networks supports the integration of in factory automation systems. Compatible MES interface function that allows the automatic transmission of from CNC data, such as quantities or maintenance-relevant data to a production control system. This supports the efficient integration into production or Quality control systems.

The I/O modules were newly developed. The modules can DIN rails and have been designed for improved I/O control extended by built-in PLC functionality. Software tools at the highest level support you in the design process to the commissioning of machine tools. Simplify your design and machine manufacturing processes.

System Configurations

Fields of application for lathe

Milling features and multi-axis, multi-part system control features have been significantly improved. Progress has been made in operability, enabling operators to implement ever more complex machining in an easy and efficient manner.

Lathe

Automatic Lathe

Vertical Lathe

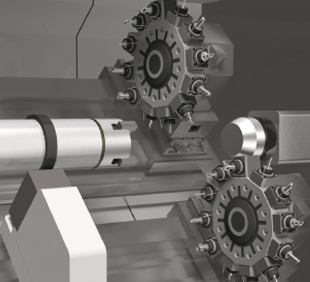

Multi-tasking Lathe

Inverted Lathe


Fields of application for milling

SSS control has further evolved, realizing high-speed, high-accuracy, high-quality machining. In addition, this CNC offers features that bring out the full potential of each axis and minimize non-cutting time, leading to higher productivity

Vertical machining center

Tapping center

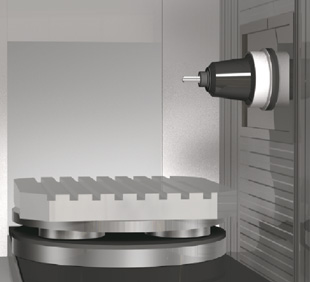

Horizontal machining center

Gantry-type machining center

5-axis control machine


Reinforced Functional Safety

M800/M80 Series provides a range of safety features collectively called the Smart Safety Observation Function. This function has achieved full conformity with the safety standards that cover the entire system including CNC, drive, I/O, sensors and communication.

  • Smart safety observation function
  • Safety-related I/O observation
  • Safely-Limited Speed (SLS)
  • Safe Operating Stop (SOS)
  • Safe Brake Control/Safe Brake Test (SBC/SBT)
  • Safe Stop (SS1/SS2)
  • Emergency stop observation
  • Safely-Limited Position (SLP)
  • Safe Speed Monitor (SSM)
  • Safe Cam (SCA)
  • Safe Torque Off (STO)

Functional safety system can be configured easily.

Safety



E-F@CTORY supports factory-wide optimization

plus
MTConnect Data Collector can import machine tool data into Edgecross

The data collected from MTConnect compatible device can be imported into Edgecross and used for edge applications etc. MTConnect is an open protocol for machine tools. By using the MTConnect Adapter which is compatible with MITSUBISHI CNC M800 / M80 Series and M700/M70 Series, you can easily collect and utilize various data of the machine tool which works with MITSUBISHI CNC.

plus
NC Visualizer enables to visualize the operating status of machine tools easier.

To build the “Operation monitoring system”, install NC Visualizer, an operation monitoring application, to your server PC. NC Visualizer displays the machine tool’s status such as “operating”, “stopped”, “alarm”, and “power OFF” in a list, which helps operators to improve the productivity or to analyze the cause of alarms. In addition, the operators can monitor the operating status with an external PC/tablet PC via a Web browser.

plus
VNC server function enables the operator to remoTely monitor and operate the NC screen.

The NC screens can be displayed on an external PC/tablet PC. Operator can monitor the machine tool’s status and operate the NC screen without going to the factory floor, which helps to improve the operation efficiency. (The function is enabled on a non-Windows-based NC display. No external computer is required.)

plus
Support for Automation

Supports increasing automation needs. Automation can be realized more easily by simple connection and control of the peripheral devices.

plus
Renewed I/O units allow the control of a number of peripherals

I/O units have been redesigned. The renewed I/O communication method makes it possible to significantly increase the maximum number of contact points per channel, enabling a number of peripheral equipment and devices to be controlled by CNC alone.

plus
Built-in PLC makes it easier to control and manage peripheral equipment and units

Built-in PLC functionality for I/O control has been improved. This CNC supports Multi-project PLC, a feature that enables ladder logics for peripheral equipment to be managed separately from those for machine tools. This creates a more efficient environment for operators working together in developing and managing ladder logics.

plus
New feature capable of stopping peripheral equipment incorporated

M800/M80 Series has a feature called Machine Group-based Alarm Stop, which stops operation of individual machine groups if an alarm occurs when control is combined with the MDS-E/EM/EJ Series. This feature allows continuation of machining even when an alarm occurs on a loader, magazine or other peripheral equipment.

  • Lathe

    M800VS SeriesM80V Series
    M850VSM830VSType AType B
    Max. number of axes (NC axes + Spindles + PLC axes)◯16 △32◯16 △32139
    Max. number of NC axes (in total for all part systems)◯16 △32◯16 △32107
    Max. number of spindles8864
    Max. number of PLC axes8866
    Number of simultaneous contouring control axes8444
    Max. number of NC axes in a part system◯8 △ 12◯8 △ 1285
    Max. number of part systems (main+sub)◯ 4 △ 8◯ 4 △ 8◯ 4◯ 2
    Max. number of main part systems◯ 4 △ 8◯4 △ 8◯ 2◯ 2
    Max. number of sub part systems◯ 4 △ 8◯4 △ 8◯ 2◯ 1
    Display unit-side High-speed program server mode
    Least command increment◯ 0,1 µm
    △ 1 nm
    ◯ 0,1 µm
    △ 1 nm
    ◯ 0,1 µm◯ 0,1 µm
    Least control increment◯ 1 nm◯ 1 nm◯ 1 nm◯ 1 nm
    Max. number of tool offset sets◯ 128 sets
    △ 999 sets
    ◯ 128 sets
    △ 999 sets
    ◯ 256 sets◯ 99 sets
    Built-in PLC capacity◯ 128 000
    △ 512 000
    ◯ 128 000
    △ 512 000
    ◯ 64 000◯ 32 000
    Multi-project [number of projects stored]◯ 2
    △ 6
    ◯ 2
    △ 6
    ◯ 3◯ 2
    Data protection by user's level
    Workpiece coordinate system shift
    3D solid program check
    Interactive cycle insertion
    Multiple spindle synchronization set control
    Spindle superimposition control
    High-accuracy control
    High-speed high-accuracy control II (G05P10000) max.[kBPM]△ 168△ 168◯ 67.5
    SSS control
    Tolerance control
    OMR-FF
    OMR-CC (Optimum Machine Response - Contour Control)
    Rapid traverse block overlap
    Spindle-mode servo motor control
    Real-time tuning 1 (speed gain)
    Real-time tuning 2 (rapid traverse time constant)
    Inclined surface machining command
    3-dimensional manual feed
    Finish shape view programming
    VNC server
    CC-Link (Master/Local)
    PROFIBUS-DP (Master)
    CC-Link IE Field (Master/Local)
    EtherNet/IP
    MES interface library
    Machine group-based alarm stop

    Refer to the specifications manuals for details. (*1) G/B:Guide Bush (*2) The 8.4-type display unit is incompatible. (*3) Windows-based display unit/Windows-less display unit (*4) Limited to the simultaneous 4-axis contouring control.

  • Milling

    M800VS SeriesM80V Series
    M850VSM830VSType AType B
    Max. number of axes (NC axes + Spindles + PLC axes)◯ 16 △ 32◯ 16 △ 32119
    Max. number of NC axes (in total for all part systems)◯16◯1695
    Max. number of spindles6642
    Max. number of PLC axes8866
    Number of simultaneous contouring control axes8444
    Max. number of NC axes in a part system◯ 8
    △ 12
    ◯ 8
    △ 12
    85
    Max. number of part systems (main+sub)◯ 2◯ 2◯ 2◯1
    Max. number of main part systems◯ 2◯ 2◯2◯1
    Max. number of sub part systems◯ 2◯ 2
    Display unit-side High-speed program server mode
    Least command increment◯ 0,1 µm
    △ 1 nm
    ◯ 0,1 µm
    △ 1 nm
    ◯ 0,1 µm◯ 0,1 µm
    Least control increment△ 1 nm△ 1 nm△ 1 nm△ 1 nm
    Max. number of tool offset sets◯ 200 sets
    △ 999 sets
    ◯ 200 sets
    △ 999 sets
    ◯ 400 sets◯ 400 sets
    Built-in PLC capacity◯ 128 000
    △ 512 000
    ◯ 128 000
    △ 512 000
    ◯ 64 000 ◯ 32 000
    Multi-project [number of projects stored]◯ 2 △ 6◯ 2 △ 6◯ 3◯ 1
    Data protection by user's level
    3D solid program check
    Interactive cycle insertion
    High-accuracy control
    High-speed high-accuracy control II (G05P10000) max.[kBPM]△ 168△ 168◯ 101◯ 101
    High-speed high-accuracy control III (G05P20000) max. [kBPM] △ 540△ 540◯ 202
    SSS control
    Tolerance control
    Variable-acceleration pre-interpolation acceleration/deceleration
    OMR-FF
    OMR-CC (Optimum Machine Response - Contour Control)
    Rapid traverse block overlap
    Spindle-mode servo motor control
    Real-time tuning 1 (speed gain)
    Real-time tuning 2 (rapid traverse time constant)
    Tool center point control△(*2)◯(*2)
    Inclined surface machining command
    3-dimensional manual feed
    Finish shape view programming
    VNC server
    CC-Link (Master/Local)
    PROFIBUS-DP (Master)
    CC-Link IE Field (Master/Local)
    EtherNet/IP
    MES interface library
    Machine group-based alarm stop

    Refer to the specifications manuals for details. (*1) G/B:Guide Bush (*2) The 8.4-type display unit is incompatible. (*3) Windows-based display unit/Windows-less display unit (*4) Limited to the simultaneous 4-axis contouring control.
